"U" Type Butterfly Valve

  • Diameter(DN): 400-2000
  • Pressure(MPa): 1.0-1.6
  • Suitable temperature:- 29°C~300°C
  • Rating :Material Will be Selected According to Services
Inquiry Now

Product Details

  • Design Standards
  • Parameters
  • Materials
  • Features
  • Applications

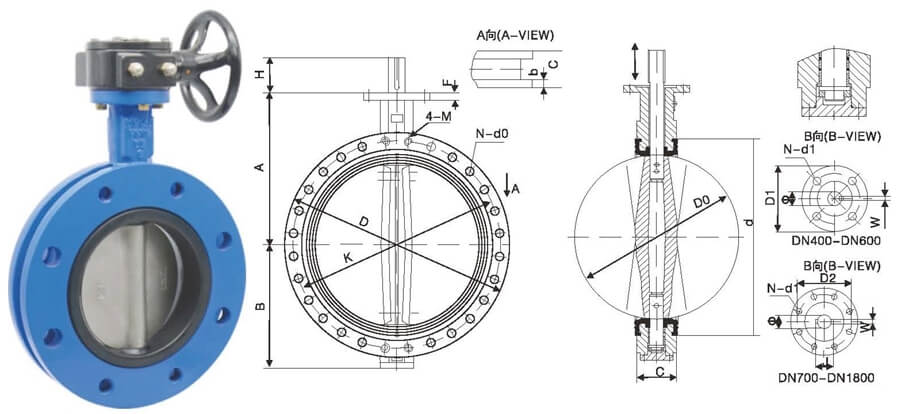

  • “U”Type Butterfly Valve D 1 1

    Adoptive Standards
    Valve Design: API 609, MSS SP-67
    Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1
    Pressure Test: API 598
    Flange Drilling: ANSI B16.1 class125, BS4504 PN10/PN16, DIN2501 PN10/PN16
    Top Flange: ISO5211

    • Application

      U-type butterfly valve is widely used in the pipeline of coal chemical industry, petrochemical industry, rubber industry, papermaking industry, pharmaceutical industry, etc.
